    High Speed Paper Straw Making Machine with 5 Head Design 250pcs/min

    Ask Lasest Price
    Brand Name : WEIXIN
    Model Number : WXZGJ-50
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 50 set/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    High Speed Paper Straw Making Machine with 5 Head Design 250pcs/min

    Applications

    1.The machine has 5 parts:paper feeder,glue feeder,winding unit,cutting unit,gather/collector unit.

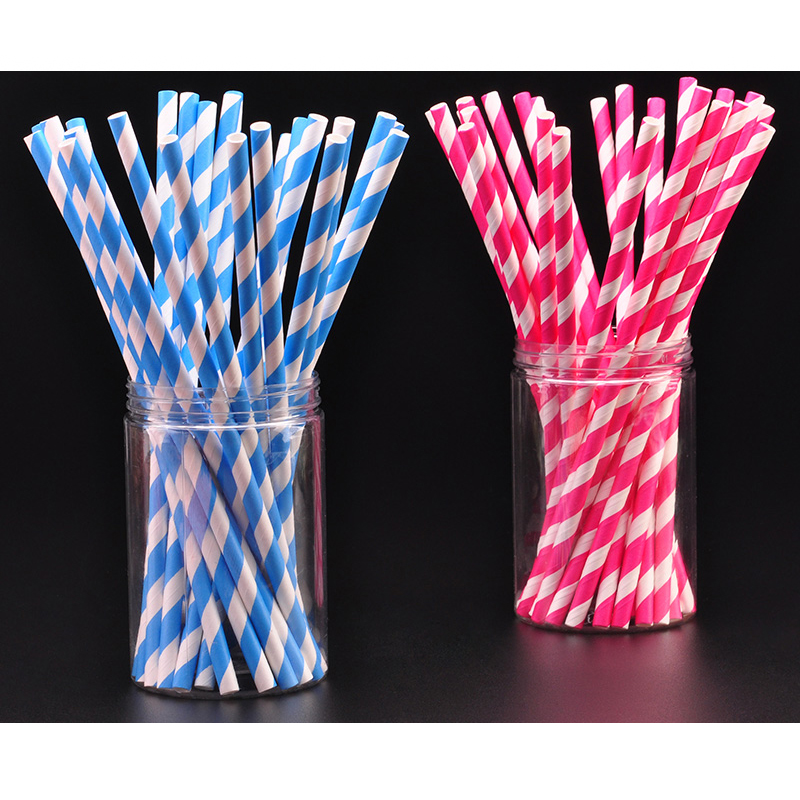

    2.It use for produce 5--12mm diameter paper straw(different diameter need through change machine parts,the length of straw it's adjustable).

    3. The machine is controlled by schneider PLC. And the cutting unit adopts schneider servo motor to control the multi-knife cutting system,the servo motor synchronous tracking cutting,higher precision,time-saving and efficient.

    4. The fuselage and main accessories are made of stainless steel to ensure product hygiene and environmental protection.

    Specifications

    Main Technical Parameters

    Paper Layer3 Layer (Inner paper 120gsm,Outside paper 60gsm)
    The Straw Inner Size4.7-12mm
    The Raw MaterialPure wood pulp paper & Kraft paper (food grade)
    Speed35-50m/min
    Cutting SystemServo motor
    Gumming WaySingle and double side
    Total Power380V 3H 50 HZ 6kw (main motor 1.5kw*2 sets)
    OperatorOne person
    Working Air Pressure0.6Mpa
    Cutter6 sets
    Weight of Machine1300Kgs
    Containers20GP*3 Sets / 40GP*7 Sets
    H.S.Code8441309000
    Machine Dimension3500*1500*1200mm
    Operation Space7000*5000mm

    Driving System
    Main Motor3KW
    Servo Motor1.5KW (Schneider)
    Frequency Inverter1.5KW (Schneider)
    Control System
    PLC ControllerSchneider
    Touch ScreenWEINVIEW Taiwan
    Fix Length WayEncode
    Operating PanelXiankong
    Execute ComponentsCHNT
    Signal ComponentsHugong
    Pneumatic ComponentsJingwei
    Electric ComponentsSchneider
    BearingHaerbin
    Screw RodShangyin
    SliderShangyin
    Spare Parts List
    Paper Shelf TypeIntegral Reel Stand
    Auto Fall Tube Shelf1 Set
    Glue Shelf1 Set
    Belts2 Pcs
    Core Mould2 Sets
    Tool Box1 Set
    Spare Knife15 pcs
    Kraft Paper6 rollers
    Paper Straw Glue10Kg
