    ONL-B700 Full Automatic Multifunctional Nonwoven bag making machine

    Ask Lasest Price
    Brand Name : OUNUO
    Certification : CE,ISO9001:2010
    Model Number : ONL-B700
    Price : 1500-5500USD/SET
    Delivery Time : 20 days
    Payment Terms : 30%TT in advance,70% Before machine loading
    Supply Ability : 30 SET/Month
    • Product Details
    • Company Profile

    ONL-B700 Full Automatic Multifunctional Nonwoven bag making machine


    Detailed Product Description


    Full Automatic Non wowen bag making machine
    1-40-100pcs/min
    2-Width:680mm
    3-30-120gsm fabric
    4-Good price,Automatic



    Name: ONL-B700 Full Automatic Multifunctional Nonwoven bag making machine


    Bags can make:


    1-Flat bag(D-cut bag)

    2-Flat bag with side guesset

    3-Box bag

    4-T-shirt bag(U-cut or W-cut is both ok)

    5-Handle bag

    6-Shoes bag(rope wearing bag)

    7-Laminating bag


    Features:

    1.Full automatic computer Control(computer from Taiwan)

    2.With stable photoeye tracking to fix position, stop automatically.

    3.The max width of the bag can be 680mm, the length is adjustable

    4.Automatic automatic acounting and automatic alarm.

    5-Air shaft equiped to feedng material easily

    6-Double drive


    Description:

    This machine is electro mechanical integrative, once through fully automatic forming, touch

    screen operation is applied, photo electric trace, computerized deviation rectifying function,

    hence accuracy and smooth. Such automatic devices as slotting device , punching device and

    metering device are equipped. Finished products are produced at fast speed, in high efficiency,

    and in firm appearance after welding. This machinery is an optical choice for the nonwoven bag

    making enterprise and businessmen devoted to the production of nonwoven environment friendly bags.

    1, local touch-screen computer configured to operate;
    2, arbitrarily set a long-step electric track, a smooth, lost support from the standard parking
    3, feed off automatic shutdown, auto-punch;
    4, while at the end of the roll-ultrasonic welding, in particular, solid, smooth;
    5, automatic temperature and automatically correcting leaks;
    6, while cutting edge automatic closure, automatic nesting.


    Main parameter:

    Type

    ONL-B600

    ONL-B700

    ONL-B800

    Production speed

    20-100pcs/min

    20-100pcs/min

    20-100pcs/min

    Bag width

    100-800mm

    100-800mm

    100-800mm

    Bag length

    200-480mm

    200-580mm

    200-680mm

    Bag making thickness

    30-100 G.SM

    30-100 G.S.M

    30-100 G.S.M

    Power supply

    380V/220V

    380V/220V

    380V/220v

    Total power

    11KW

    12KW

    13KW

    Overall size

    11000*1820*1900mm

    11000*1920*1900mm

    11000*2020*1900mm

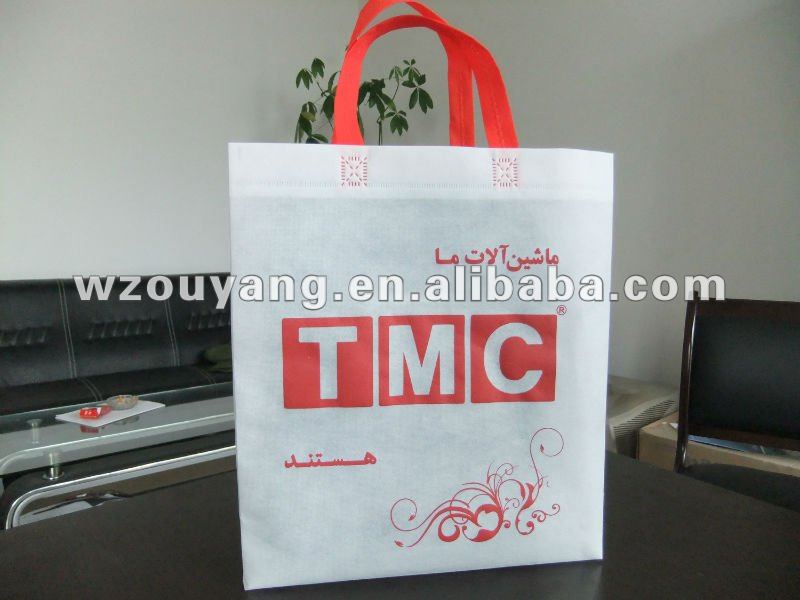

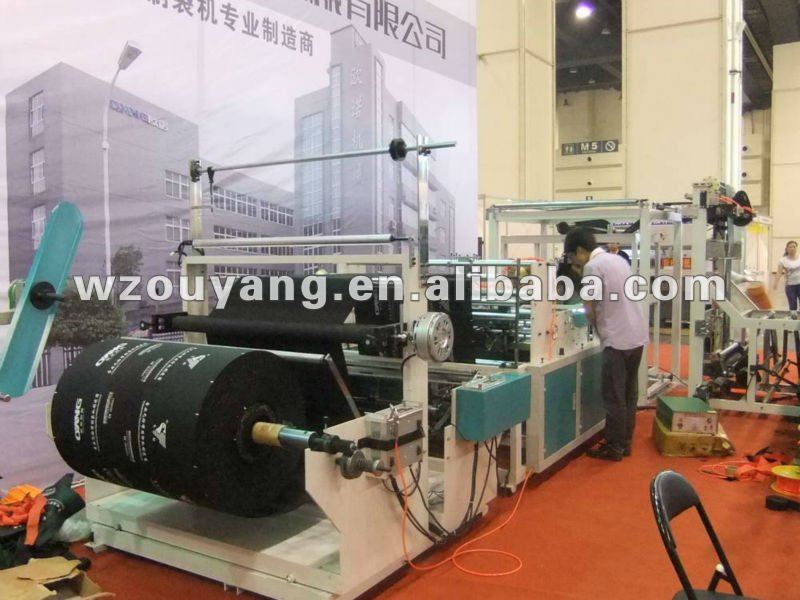

    Bags sample and live machine photos:

    DSCF8248

    022023


    Sample bag 01

    DSCF4447

    DSCF3592
