SJ55/60/70 PP Film Blowing Machine

    Buy cheap SJ55/60/70 PP Film Blowing Machine from wholesalers

    Buy cheap SJ55/60/70 PP Film Blowing Machine from wholesalers
    • Buy cheap SJ55/60/70 PP Film Blowing Machine from wholesalers

    SJ55/60/70 PP Film Blowing Machine

    Ask Lasest Price
    Brand Name : OUNUO
    Certification : CE
    Model Number : SJ55/60/70
    Price : 5500-19500 USD/SET
    Delivery Time : 20 DAYS
    Payment Terms : T/T ,L/C
    Supply Ability : 30SET/MONTH
    • Product Details
    • Company Profile

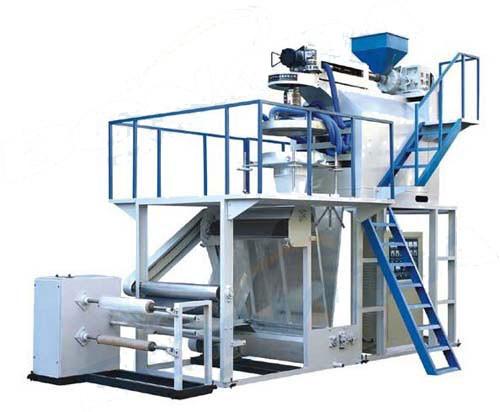

    SJ55/60/70 PP Film Blowing Machine

    Uses:

    The machine is suitable for producing PP. it is widely be used for packing food, garment, textile, daily necessaries and industrial product etc.


    Characteristics:

    1. Die head can be turned in 360 , it can strengthen tile tension and evenness degree of film.

    2. Screw stem and cylinder are all made of 38CRMOALA alloy, and treated by nitrogen. It has an advantage of great thickness, corrosion resistance and endurance etc.

    3. Die head has been chromed, it’s advantage of screw core structure, melting material extruding evenly, and blowing and smoothly etc. Cooling equipment is a labyrinth blow pump which has good effect. Especially, it adopts the recycling cooling water system to ensure the best transparent effect.

    4. Discharging equipment adopts pressing braking winding equipment& central winding equipment, and it adopts torque motor to adjust, has the merits of smooth and convenience operation.


    Main Parameters:


    Model

    SJ55-600

    SJ55-700

    SJ60-800

    SJ65-900

    Diameter of screw

    Φ55mm

    φ55mm

    Φ60mm

    Φ65mm

    Max. finished product width.

    500

    600

    700

    800

    Single layer film thickness

    0.01-0.10mm

    0.01-0.10mm

    0.01-0.10mm

    0.01-0.10mm

    Max. Out (Kg/h)

    35-40kg/h

    45kg/h

    55-60kg/h

    60-65kg/h

    Screw ratio(L/D)

    28:1

    28:1

    28:1

    28:1

    Main motor power(KW)

    15

    15

    18.5

    22

    Power of traction motor(KW)

    1.1

    1.1

    1.1

    1.5

    Length of traction roller(mm)

    600

    700

    800

    900

    Overall dimension(mm)

    4200*2500*4000

    5000*2800*3800

    5000*3000*4500

    5500*3500*4500
