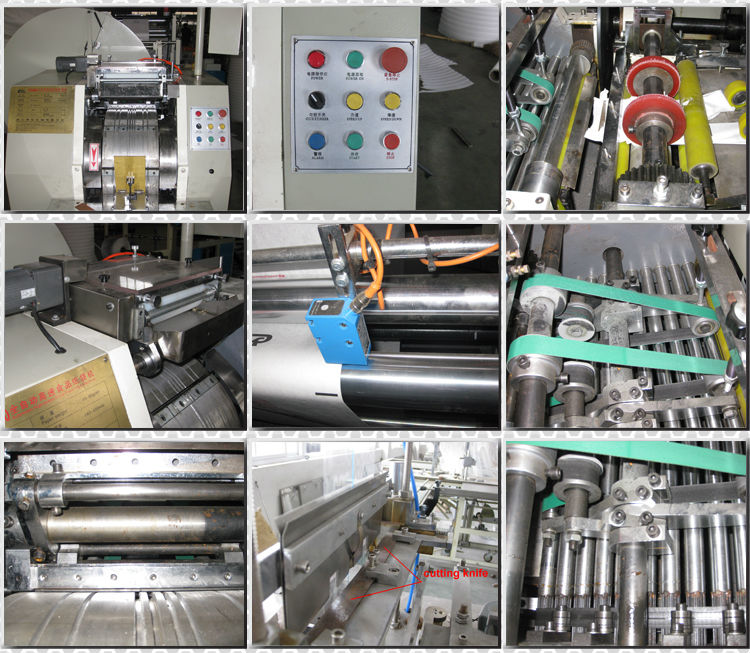

High Speed Fully Automatic Sharp Bottom Food Kraft Paper Bag Making Machine

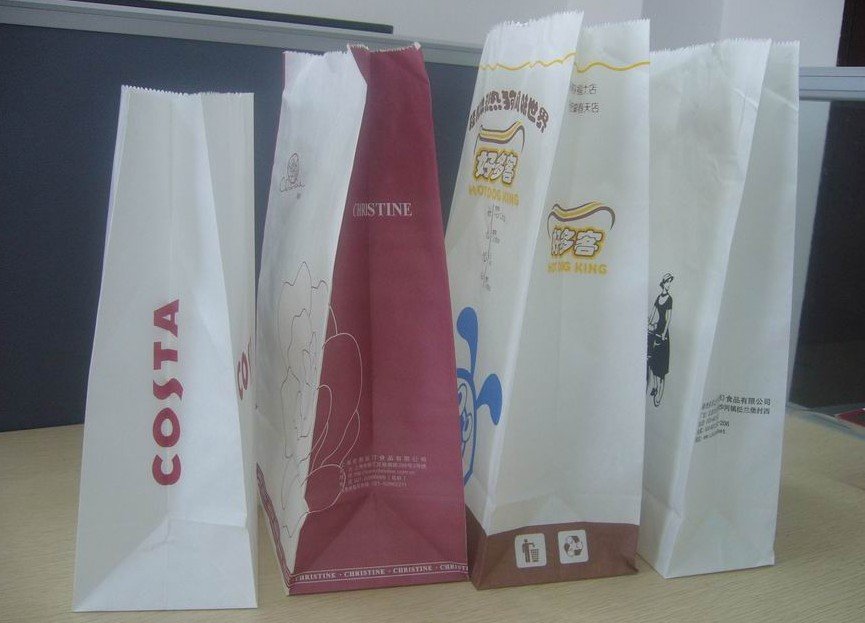

Roll Feeding Square Bottom Paper Bag Making Machine

1)Features:

1.Adjustable roll to square bottom bag making machine

2.Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed

in screen on-line, easy for operation and maintenance.

3.Equipped with Mitsubishi PLC for centralized control system and SICK photocell for correction,

tracking the printed material accurately, minimize the adjustment and preset time, increase the

production efficiency.

4.Human oriented security protection, whole housing design, ensure the safety of operator.

5.Physiosis roller hydraulic material loading system with chuck, hydraulic up/down system

6.Automatic constant tension control for unwinding, EPC web guider system, motor for material

feeding with inverter, minimize the adjustment time for web alignment.

7.High speed oriented design ensure successful of production: within the suitable paper range,

production capacity can reach 150~200pics/min, even higher. Increased the unit production capacity

and higher profit.

8.Original SCHNEIDER electric system, ensure better stability and reliability; perfect after sale service,

trouble free for customer.

*Speed will be variable due to different glue quality and operator's skill.

* Bag Dimension, Adhesive Quality, Operator Knowledge, % Moisture, Type and Basis weight of

Paper Can affect Machine Speeds.

Main Configuration

1.Unwind Section

Structure, Features:

(1) Separated single unwind roll stand with hydraulic lift device.

(2)Physiosis roller for paper roll loading, the load arms are driven by two hydraulic cylinders separately,

can be adjusted arbitrarily.

(3) magnetic powder brake and constant auto tension control for unwinding tension control.

(4) EPC (electronic program control )web guide system for material alignment.

Technical Parameters:

Competitive Advantage:

1.We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.

2.Machines with good quality in one year, life-long maintenance.

3.We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.

4.We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.

5.Undertake various non-standard machinery, solve the customers' requirements.

Wenzhou Wexin Machinery Co.,Ltd is one of the most professional manufacturers and suppliers in non woven  packing related machine. We mainly provide non woven bag making machine, non woven fabric making equipment ,flexographic printing machine,,blowing film machines.
