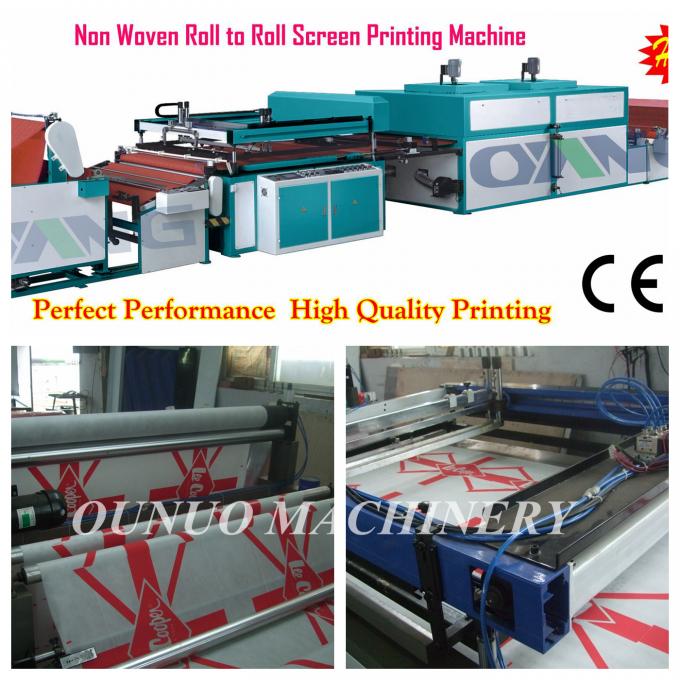

    Automatic double color non woven fabric roll to roll screen printing machine , 1500m/hour

    Ask Lasest Price
    Brand Name : OUNUO
    Model Number : FB-NWF12010II
    Certification : CE,ISO9001:2000
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 30set/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Automatic double color non woven fabric roll to roll screen printing machine , 1500m/hour

    Auto two color non woven fabric roll to roll screen printing machine , 1500m/hour


    Performance and Features:


    1. Automatic feeding printing,drying and collecting.Save labors and overcome restraints caused by weather conditions.

    2. With Balanced pressure,with high ink thickness.Suitable for printing on high-quality non-woven products.

    3. Applied to various sizes of printing screen frames.

    4. Big-size printing area to print multiply layouts.Improve work efficiency.

    5. Before and after full page printing,effective space between images can be reduced to

    minimum 1 cm.Effectively reduce the material waste.

    6. High precision of printing controlled by servo motor.

    7. Connected with non-woven bag making machine to produce the bag automatically.Greatly improve work efficiency.


    Main technical parameters:


    ModelFB-NWF12010II
    Max.Printing Size1200×1100mm
    Nonwoven Fabric Rolls Width1250mm
    Nonwoven Fabric Thickness45g/m²~100g/m²
    Max.Diameter of Rolls800mm
    Printing Speed500-1500m/h
    Voltage&Total Power380V 3P4N 24Kw
    Machine Size10500×1800×1720mm
    Basic StructureFeeding Part+Printing Part+Drying Part+Collegting Part
    Weight2000kg

    Auto two color non woven fabric roll to roll screen printing machine , 1500m/hour


    Auto two color non woven fabric roll to roll screen printing machine , 1500m/hour
